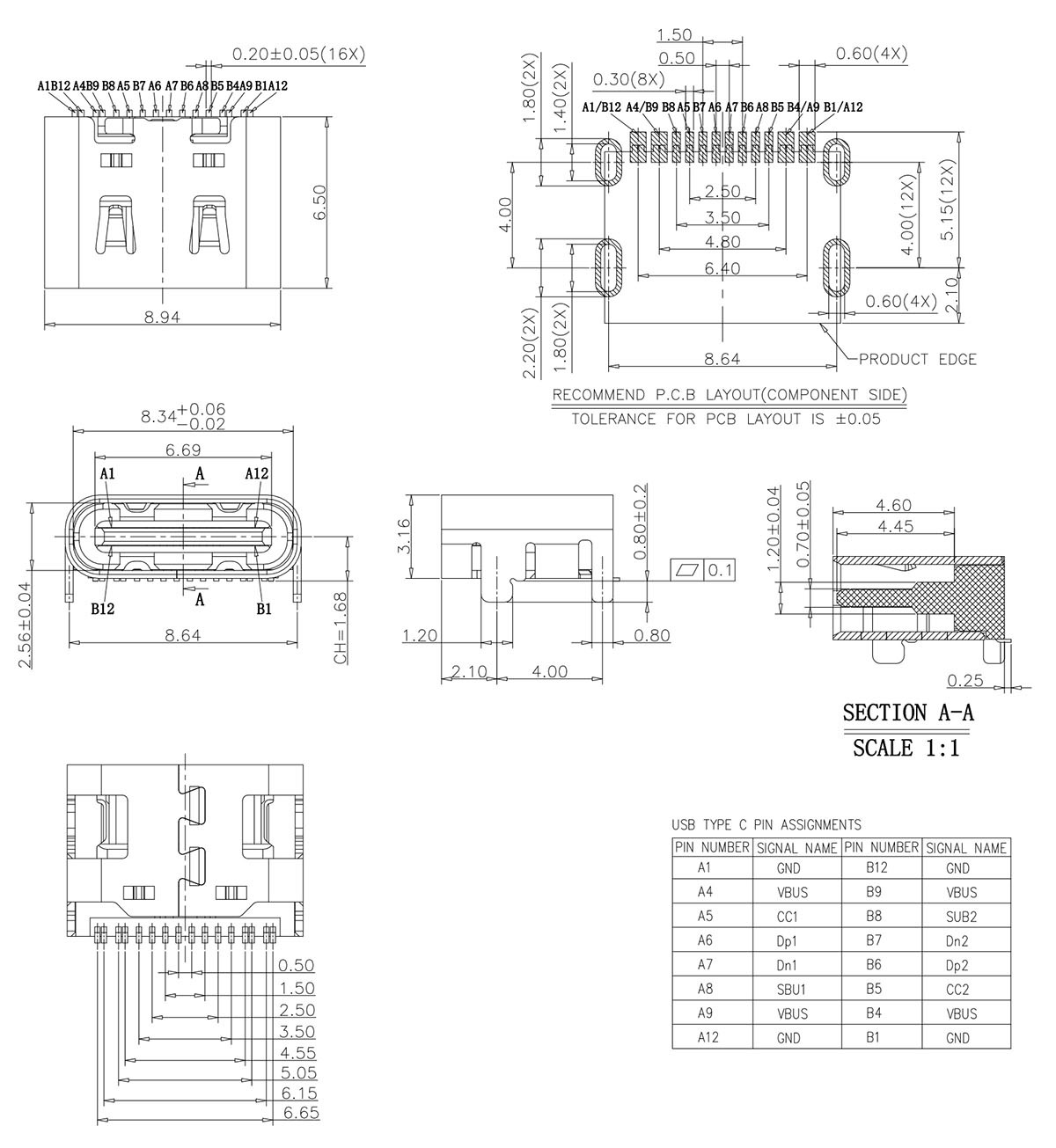

    TPC004-TYPE C 母座 16P SMT L=6.5(外壳带弹片四脚插)

    NOTES:
    1.Material:See Table
    2.Finished:See Table
    3.Mechenical:
    Insertion force: 0.5~2.0kgf
    Removal force: 0.8~2.0kgf
    Durability: 10000 times
    4.Electrical:
    Current rating: 5.0A Max
    Voltage rating: 5.0V
    Insulation resistance:100MΩ Min
    Dielectric withstand voltage.AC 100V for 1Minute.
    5.Environmental:
    Oferating temperature:-30°C~+80°C
    6.IR REFLOW:
    The peak temperature on the board shall be maintained for 10 seconds at 260°C
    888电子集团
    • 产品规格
    • 材质用料

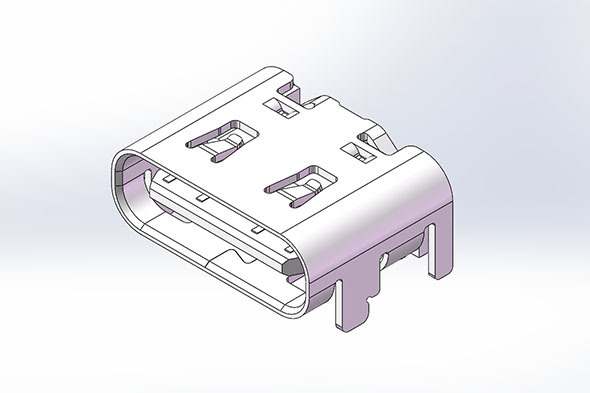

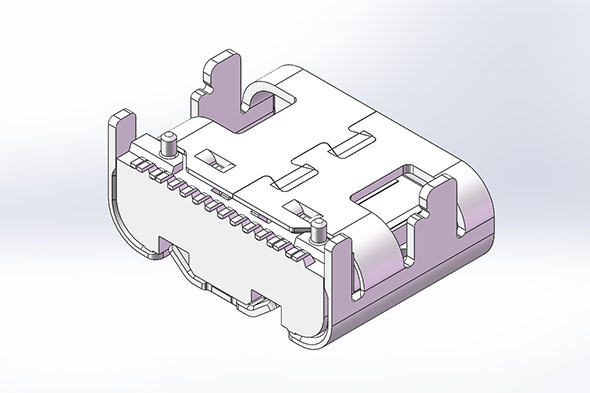

    • 3D图

    • TYPE C 母座 16P SMT L=6.5 (外壳带弹片/四脚插)

      a

    • MATERIAL:

      1.SHELL：STAINLESS STEEL ,Ni PLATED 30u"Min.

      2.CONTACT：COPPER STEEL ,Ni 50u"Min;Au 3u".

      3.MID PLATE：STAINLESS STEEL,NO PLATING.

      4.MD HOUSING：HIGH TEMPERATURE RESISTANT PLASTIC  UL94 V-0.
